Function Purpose

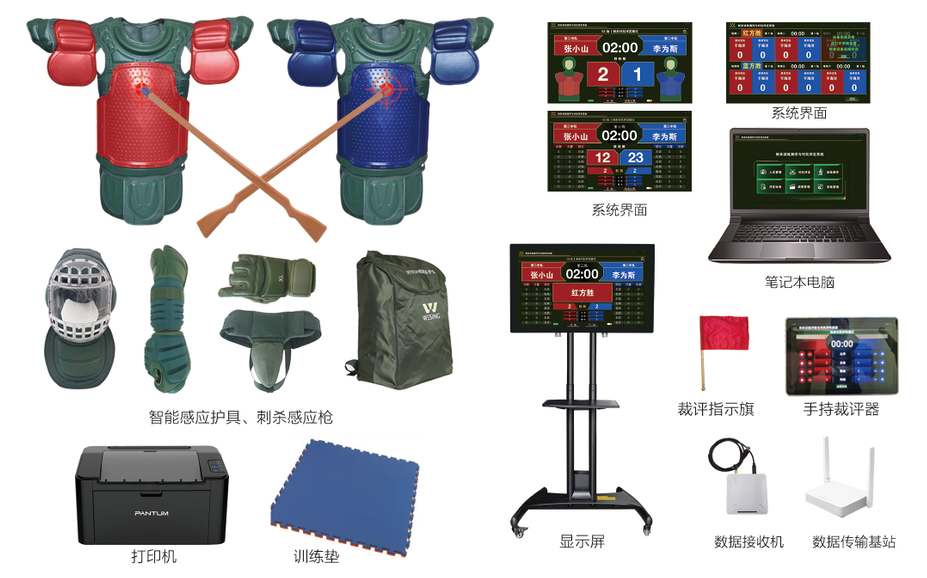

Used for assassination confrontation training and assessment. It can identify and display the attacked body parts during assassination confrontation training, analyze the attack intensity, and judge the effectiveness of assassination attacks; it provides fair and accurate data for assassination confrontation training and assessment, effectively improving soldiers' bayonet fighting skills. During assassination confrontation training, it effectively protects the head, neck, chest, shoulders, arms, fingers, and groin of the trainees. The complete set of protective gear is tightly connected and comfortable to wear.

Assassination Application Software System:

The assassination application software system is installed on a domestic laptop computer running a domestic operating system and has two functions: confrontation assassination training assessment and basic assassination techniques.

Requirements for Confrontation Assassination Training Assessment Function:

1. The confrontation assassination training assessment mode has win-gun mode, win-round mode, golden-gun decisive mode, and gun-calibration mode, and the competition time can be customized;

2. The system can set attack intensity thresholds for various effective scoring parts, collect the number of attacks and force data of the sensing gun attacking the effective parts of the protective gear (effective attack parts include: left chest, right chest, left abdomen, right abdomen, upper abdomen, lower abdomen, left rib, right rib, left shoulder, right shoulder); statistics and display effective/invalid gun data (also has a graphical information display function).

3. The system simultaneously supports two methods for refereeing penalties and process control of the entire confrontation process: wireless access to handheld judgment assistants (tablet computers) and the main control computer; the wireless display and judgment assistant (tablet computer) have voice prompts; the system has replay query of the entire confrontation process, assessment results display and management functions (storage, query, report generation and export of results);

4. The system has a competition arrangement function, which can generate a list of competition participants according to different competition rules such as single-elimination, double-elimination, round-robin, and ranking, and batch import according to the competition process;

5. Confrontation assassination training assessment can support 1-6 venues simultaneously; 6 judgment assistants and 6 displays can be connected simultaneously; the display and judgment assistant signal transmission can be synchronized with the software system in real time; it has a device registration function, and one-click registration can be achieved through the signal collector.

Technical Parameters:

1. Wireless transmission communication frequency: 433MHz;

2. Wireless transmission distance: 1200 meters;

3. Induction receiver: 5V, USB power supply;

4. Mean time between failures: MTBF≥500H;

5. System application environment: supports Windows 7 system, domestic Linux system;

6. Battery charging method: 5V DC power supply;

7. The system uses multi-dimensional sensors to accurately collect the stabbing force on any part of the body protection in 360 degrees;

8. Waterproof Oxford cloth: pilling grade 4, friction color fastness grade 4, seam strength 200N, tear strength 25N;

9. The mask and chest protector can withstand a static pressure of 125kg for 5 seconds without breaking; impact resistance: 3KG weight hammer free fall from 1 meter without damage; cold resistance: -30℃;

10. Felt thickness 2.98mm, hardness 32 degrees, energy absorption: 1kg weight hammer free fall from 1 meter, rebound height less than 20cm;

11. Synthetic leather tear strength 38.2N, peel strength 35.2N, friction color fastness grade 4, hydrolysis resistance 24h;

12. Molded tablet hardness (Shore C) 62°, cold resistance -30°, 50kg static pressure for 10 seconds without breaking, thickness deformation less than 1mm, 3kg weight hammer free fall from 1 meter without damage;

13. The crotch lining can withstand a static pressure of 100kg without breaking; impact resistance: 2kg weight hammer free fall from 0.5 meters without damage;

14. Assassination training gun length 1380mm*width 100mm*thickness 37mm (error ±5mm), total gun weight 1.8kg (error ±100g);

15. Can be used normally in an environment of -20℃-+50℃;

16. Large display screen: 1 floor stand, 1 monitor, 1 video cable; receives and distributes content from the distributor, synchronizing the assessment software display content.

17. Competition venue training mat: high-density EVA foam molding, good resilience, wear-resistant, good cushioning and shock absorption performance, preventing injury, the surface adopts a raised double-grain anti-slip design, with male and female tooth cuts on four sides, which can be spliced at will, good training protection performance; it can provide ground protection, reducing the risk of falls and injuries during training and competition for athletes. It can reduce the impact force of falls and provide a safer training environment for athletes. 18. Printer: prints personnel lists, competition results, etc., printing speed 0-24 pages/minute, supports double-sided printing, improves printing efficiency;

19. Judgment device: 10.1-inch full-screen, dual-amplitude speakers. The judgment device can perform refereeing penalties and process control for the entire confrontation process; it also has a voice prompt function;
