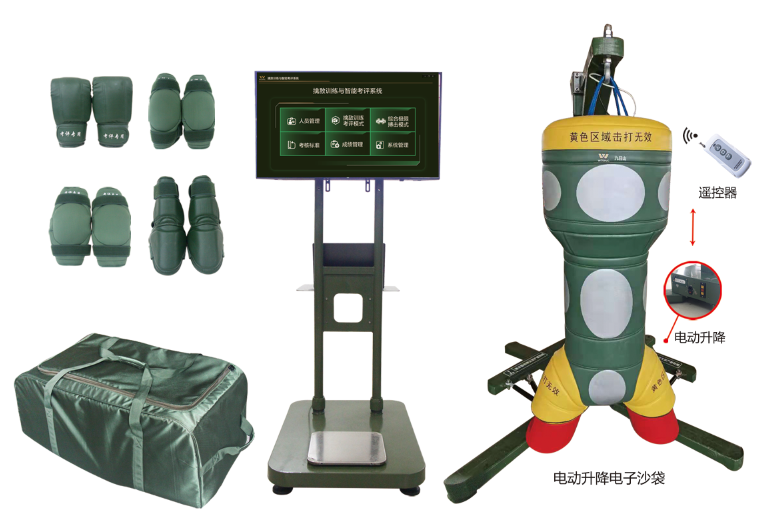

I. Intelligent Assessment Management System

1. One laptop, one software installation disc, one USB dongle; the laptop has built-in software assessment standards to determine whether the assessment data is qualified, and supports the export of group comprehensive scores and individual comprehensive scores;

2. Data receiver: one data receiver, one USB data cable. The striking data is sent from the signal collector to the data receiver wirelessly and uploaded to the intelligent assessment management software, accurately detecting the striking force and the number of strikes;

3. Large display screen: one floor stand, one monitor, one video cable; receives and displays content distributor information, synchronizes the assessment software display content;

4. Weight collector bracket and data display screen: bracket with weight collector, one 32-inch Android smart display; the display and weight collection platform consists of a weight collector, a display content distributor, a display content receiver, and a data display screen, which can be wirelessly connected to the intelligent assessment management system software to collect and display personnel weight data in real time and transmit it to the intelligent assessment management system.

5. Display content distributor: one unit with network cable and power adapter, which can collect the striking force and the number of strikes, and synchronously send the striking data to the large screen wirelessly;

6. The system has multiple functions, including personnel management, equipment management, score management, assessment standard management, and comprehensive extreme fighting assessment (individual or team assessment), and grappling training and assessment;

7. Comprehensive extreme fighting assessment function: specially used for special operations training assessment, realizing the functions of automatic counting of continuous assessment of combination movements (e.g., whip leg + front kick + elbow strike) with different assessment standards, and having a team assessment function, which can be used for team joint examinations and automatically assess the team assessment scores;

8. Grappling training and assessment function: specially used for the training and assessment needs of nine movements (straight punch, swing punch, hook punch, snap kick, side kick, front kick, side kick, horizontal elbow strike, and front knee strike) in single-soldier grappling and fighting subjects, which can collect the single-strike force value, effective strike count, and maximum strike force value;

9. The system can select 1-4 electronic assessment sandbags to be connected to the system, realizing 1-4 people training or assessment at the same time. According to the movement type, gender, and weight, the system can judge the single movement (or preset combination movements) of the assessed personnel, and comprehensively assess the assessment personnel's score based on multiple movements;

10. Import the name, gender, and weight information of the training or assessment personnel. There are voice prompts during the training or assessment process. After the assessment, the system can voice broadcast the score information. Score management can query, export, and print the individual or group single-movement scores or comprehensive movement scores.

II. Assessment Sandbags

1. One set of electric lifting sandbag rack; the sandbag rack adopts steel pipe welding technology, can be wirelessly remote-controlled electric lifting, has two power supply methods: built-in battery and external power interface, lifting range 160-190cm, suitable for people of different heights and weights, no continuous shaking when striking, and uses multi-dimensional force sensor as the core component, 360-degree accurate collection of multi-directional striking force and number of strikes, accurate values;

2. One electronic sandbag (mushroom type, with multi-channel signal collector); the electronic sandbag contains a multi-channel signal collector, which can complete the assessment of straight punch, swing punch, hook punch, snap kick, side kick, front kick, side kick, horizontal elbow strike, and front knee strike movements; select the corresponding hanging electronic sandbag group according to the assessment requirements;

3. One integrated charger;

4. The middle polyurethane foam and the outer leather cover provide excellent wear resistance and aging resistance, and can effectively prevent the sandbag from being damaged by the external environment;

5. The electric lifting bracket can be manually/remotely controlled, hanging and fixing the assessment electronic sandbag. The sandbag collects the striking force and the number of strikes of straight punch, hook punch, swing punch, snap kick, side kick, front kick, side kick, horizontal elbow strike, and front knee strike movements at 360 degrees. When the electronic sandbag is hit, the collected number of times and force value are accurate and the state is stable. The protective cover of the assessment electronic sandbag has a multi-layer composite structure, which effectively reduces the reaction force and avoids injury;

6. Sandbag material: the inner tank is made of alloy casting, and the buffer layer is made of integral foaming;

7. Sandbag repeated calibration accuracy: the repeated calibration error of 200 kg static force is less than 1%;

8. Sandbag multi-point force measurement error: when hitting the upper, middle, and lower parts of the sandbag with a 100 kg dynamic impact force, the force measurement error is less than 5%;

9. Signal collector interface type: 3 RJ45 sensor interfaces.

III. Special Protective Gear

1. Special boxing gloves: 3 pairs of M and L; boxing gloves: waterproof and wear-resistant surface, inner lining is made of multi-layer composite latex, strong energy absorption effect, winding Velcro strap for easy and comfortable wearing;

2. Special knee pads: 2 pairs of M, L, and XL; strong energy absorption effect of the inner lining, waterproof and easy-to-clean fabric, effectively protects the knees, winding elastic elastic band buckle, comfortable and secure wearing;

3. Special elbow pads: 2 pairs of M, L, and XL; waterproof and easy-to-clean fabric, strong energy absorption effect of the inner lining, effectively protects the elbow joint, winding elastic elastic band buckle, comfortable and secure wearing;

4. Special instep protectors: 2 pairs of M, L, and XL; waterproof and wear-resistant fabric, protective layer is segmented laminated plastic plate, impact resistant, with air guide grooves, Velcro fastening for adjustable size, comfortable and secure wearing, reliable protection;

5. Protective gear bag: can accommodate special protective gear (6 pairs of special boxing gloves, 6 pairs of special knee pads, 6 pairs of special elbow pads, 6 pairs of special instep protectors), with wheels at the bottom for easy carrying.
